What is Network Topologies?
Topology in computer network refers to the physical or logical layout of the various components that make up a network, such as devices, cables, and routers. It describes how the devices on a network are connected to each other and how data is transmitted between them. It is the scheme of how the devices are interconnected and how they communicate with each other. It can be either physical or logical, which can be explained as a physical topology refers to the physical layout of the network and the logical topology refers to the flow of data in the network.
 |
| Network Topologies in computer network skills arena |
What are the types of computer network Topologies
The names of topologies in computer networks are:
1) Bus topology
2) Star topology
3) Ring topology
4) Mesh topology
5) Tree topology
6) Hybrid topology
Bus Topology
Bus topology is a type of network topology in which all devices are connected to a single cable, known as the bus. The bus is a linear cable and data is transmitted along the bus in a single direction and all devices on the network can access it. In bus topology, devices are connected to the bus through a T-connector or tap.
 |
| Bus Topology in computer network |
Advantages of Bus topology:
• Simple and easy to set up: Bus topology is very simple and easy to set up, making it a popular choice for small networks.
• Cost-effective: Bus topology is relatively inexpensive to set up and maintain, making it a cost-effective option for connecting devices in a small area.
• Easy to identify and troubleshoot problems: Bus topology is easy to troubleshoot as all devices are connected to a single cable, making it easier to identify and fix problems.
Disadvantages of Bus topology:
• Limited scalability: Bus topology is typically designed to connect a small number of devices, and adding more devices can be difficult.
• Single point of failure: If the bus cable is damaged, the entire network will go down and all devices will be disconnected.
• Limited cable length: Bus topology has a limited cable length, and devices outside of this area will not be able to connect to the network.
• Limited bandwidth: Bus topology uses a shared medium to transmit data, which can lead to limited bandwidth for devices connected to it.
Star Topology
Star topology in computer networks is a network layout where all devices are connected to a central hub or switch. The central hub or switch acts as a central point of control and data is transmitted to the central hub and then out to the devices on the network.
 |
| Star Topology in computer network skills arena |
Advantages of Star Topology:
• Centralized control: The central hub or switch in a star topology allows for easy management and control of the network.
• Easy to expand: Additional devices can be added to the network without disrupting the existing network.
• Isolation of devices: If a device on the network fails, it does not affect the rest of the network.
• Easy to troubleshoot: If a device on the network is not working, it can be easily isolated and replaced.
Disadvantages of Star Topology:
• Single point of failure: If the central hub or switch fails, the entire network will be down.
• Higher cost: Star topologies typically require more cables and equipment than other topologies.
• Limited distance: Devices in a star topology must be within a limited distance of the central hub or switch.
• Higher Latency: The data needs to travel through the central hub or switch before reaching the end device which can cause a delay or latency.
Star topology is widely used in small to medium-size networks and it's suitable for both home and office environments. It is easy to set up, manage and control as it has a centralized point of control.
Ring Topology
Ring topology is a type of computer network layout where all devices are connected in a circular pattern and data is transmitted in a circular pattern around the ring. In this topology, each device is connected to two other devices on the network, with the first and last device being connected to form a closed loop.
 |

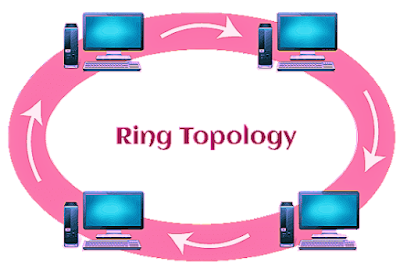

| Ring Topology in computer network skills arena |
Advantages of ring topology:
• Data is transmitted in a single direction: In a ring topology, data is transmitted in a single direction, which can help to reduce the amount of data collisions and improve network performance.
• Easy to identify and isolate faults: In a ring topology, it's easy to identify and isolate faults because the network can continue to operate even if one device fails.
• High level of security: Ring topology networks have high level of security because the data is transmitted in a single direction, which makes it difficult for unauthorized users to intercept the data.
Disadvantages of ring topology:
• Limited scalability: Ring topology networks are typically limited in terms of scalability and it can be difficult to add more devices to the network.
• Single point of failure: Ring topology networks are vulnerable to a single point of failure, where the entire network can be brought down if one device fails.
• Limited speed: Ring topology networks have limited speed as it only allows one device to transmit at a time.
• Dependence on a central hub:Ring topology networks depend on a central hub, which can become a bottleneck for the network if it fails or becomes overloaded.
Ring topology is suitable for small networks, it is less commonly used in large networks because of its limited scalability and vulnerability to a single point of failure.
Mesh Topology
Mesh topology is a type of computer network layout where each device on the network is connected to multiple other devices, providing multiple paths for data to travel. This means that if one path becomes unavailable, the data can still be transmitted using another path.
 |
| Mesh Topology in computer network skills arena |
Advantages of Mesh Topology:
• Redundancy: Mesh topology provides multiple paths for data to travel, which means that if one path becomes unavailable, the data can still be transmitted using another path. This improves the reliability and availability of the network.
• Scalability: Mesh topology allows for easy expansion of the network by simply adding more devices to the network.
• Security: Mesh topology provides multiple paths for data to travel, which makes it difficult for unauthorized users to access the network.
• Flexibility: Mesh topology allows for easy reconfiguration of the network, making it easy to change the layout of the network as needed.
Disadvantages of Mesh Topology:
• Complexity: Mesh topology can be complex to set up and maintain, as each device on the network must be configured to connect to multiple other devices.
• High cost: Mesh topology requires more cables and devices than other types of topologies, making it more expensive to implement.
• High maintenance: Mesh topology requires regular maintenance to ensure that all devices are properly configured and connected to the network.
• High bandwidth consumption: Mesh topology requires a high amount of bandwidth to operate properly, which can be a limitation if the network is not designed to handle it.
In summary, Mesh topology provides multiple paths for data to travel, improving the reliability and availability of the network and it's more flexible, but it's more complex, high cost, and high maintenance than other types of topologies.
Tree Topology
A Tree topology is a network layout where the devices are connected in a hierarchical structure, with a central hub or switch at the top and devices branching off from it. It is a combination of a Bus and a Star topology. The central hub or switch acts as the main connection point for all devices on the network and is often referred to as the "root" of the tree. The devices connected to the root hub or switch are called "branches" and can have other devices connected to them, creating a hierarchical structure.
 |
| Tree Topology in computer network skills arena |
Advantages of Tree topology:
• Scalability: Tree topology can easily expand to accommodate new devices and can support a large number of devices on the network.
• Good organization: Tree topology is organized, easy to understand and manage.
• Flexibility: Tree topology can be easily expanded or modified, making it a flexible option for networks that need to adapt to changes.
• Easy to troubleshoot: Tree topology is easy to troubleshoot because each branch of the network can be identified and isolated.
Disadvantages of Tree topology:
• Single point of failure: If the root hub or switch fails, the entire network will be down.
• Distance limitations: The distance between the devices is limited by the length of the cables used to connect them.
• Expensive: The cost of setting up and maintaining a Tree topology network can be expensive due to the need for additional hubs or switches.
• Vulnerability: Tree topology can be vulnerable to network congestion and data collision if the network is not properly managed.
In summary, Tree topology is a good option for networks that need to be scalable, organized, flexible and easy to troubleshoot.
Hybrid Topology
Hybrid topology in computer networks is a combination of two or more different network topologies, such as a star-bus, star-ring, or bus-ring. It allows for the use of the best features of different topologies in a single network.
 |
| Hybrid Topology in computer network skills arena |
Advantages of Hybrid topology:
• Flexibility: Hybrid topologies allow for the use of different topologies in a single network, which provides flexibility and adaptability to changing network requirements.
• Increased Reliability: Hybrid topologies can use multiple paths for data transmission, which can increase the reliability of the network.
• Improved Performance: By using different topologies, hybrid topologies can improve the performance of the network in areas where one topology may be weak.
• Scalability: Hybrid topologies can be easily scaled up or down to meet the changing needs of the network.
Disadvantages of Hybrid topology:
• Complexity: Hybrid topologies can be more complex to set up and maintain than a single topology network.
• Cost: Hybrid topologies can be more expensive than a single topology network due to the need for multiple devices and cabling.
• Troubleshooting: Troubleshooting a hybrid topology network can be more difficult than a single topology network due to the complexity of the network.
In conclusion, Hybrid topology is a good solution when it comes to combining the best of different topologies but it's not always the best solution, it depends on the requirements of the network. It's a more complex and costly option but it provides more flexibility and adaptability.
